Fiber Laser Source

Explore advanced fiber laser source technology with precision and efficiency. Our fiber laser power sources and fiber laser power supplies are not only ideal for cutting and welding but are also perfect for 3D printing and other industrial applications. Featuring top brands like Raycus and Max Photonics, our products deliver stable output, superior beam quality, and extended service life. Whether you need single-mode, multi-mode, or pulsed fiber lasers, we provide tailored solutions to enhance your productivity. Trust our expertise and take your industrial processes to the next level.

Product Showcase

Raycus

Raycus is a global leader in fiber laser technology, offering a wide range of high-performance lasers, including Raycus 1500W, Raycus Laser 1000W, Raycus 2000W, Raycus 4KW, and Raycus 6KW models. Known for their efficiency, stability, and durability, Raycus fiber lasers are ideal for cutting, welding, and 3D printing applications. The Raycus Fiber Laser 20W is perfect for precision marking, meeting high-accuracy processing demands across various industries.

Max Photonics

Max Photonics, a leading fiber laser manufacturer from China, specializes in high-power laser solutions. The Max Photonics Laser Welder is designed for efficient welding processes, offering superior performance. As a flagship product of Max Photonics China, the MaxPhotonics 12KW fiber laser delivers exceptional power and beam quality, making it an excellent choice for metal cutting and welding industries.

Global-Series CW Fiber Laser Source

Global-Series CW Fiber Lasers by Raycus are high-performance, single-module continuous wave fiber lasers designed for various industrial applications such as cutting, welding, and marking. These lasers, ranging from 1000W to 12000W, offer excellent electro-optical conversion efficiency, superior beam quality, high energy density, and wide modulation frequency. With strong reliability, long lifespan, and maintenance-free operation, they meet diverse customer needs while allowing for customization. The series is equipped with a QBH laser output connector, ensuring broad compatibility with different systems, making them popular both domestically and internationally.

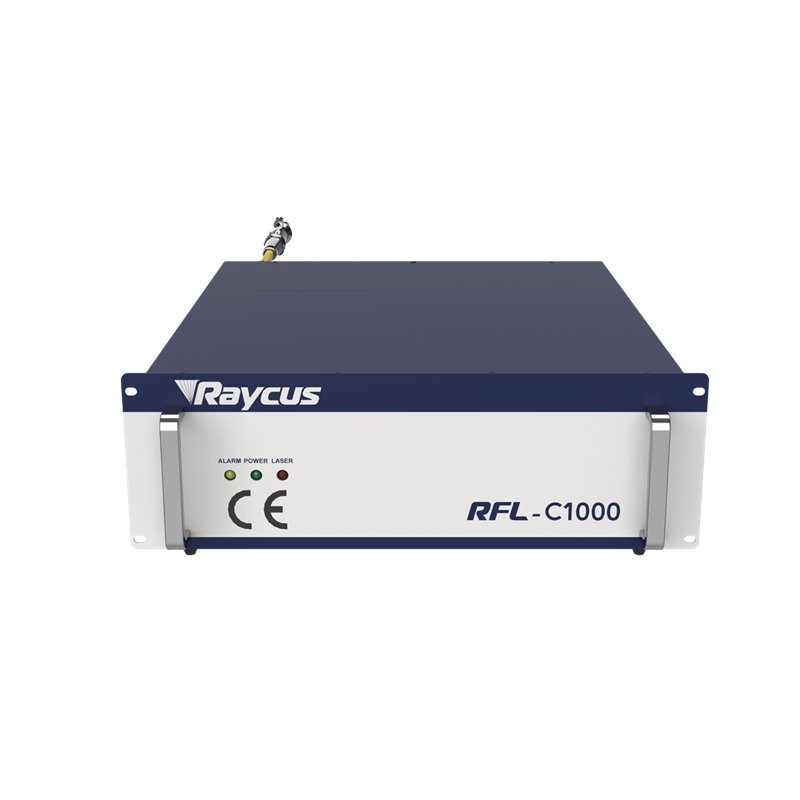

The 1000W Global-Series CW Fiber Laser (RFL-C1000S-CE) by Raycus is a high-performance fiber laser designed for a wide range of industrial applications such as cutting, welding, piercing, and medical device processing. With an optimized second-generation fiber transmission system, it ensures stable and precise cutting for thick sheet materials, providing narrow seams and smooth edges. This series, ranging from 1000W to 60000W, offers higher electro-optical conversion efficiency, more stable optical quality, and enhanced resistance to high-altitude conditions. It is widely used for precision tasks in various industries.

Key Features

High electro-optical conversion efficiency
QBH/QD connectors, customizable
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 1000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 5kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: QBH (customizable)
Output fiber core diameter: 25μm (customizable)
Beam quality: <1.5
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 200-240V AC, single-phase
Control mode: RS232, AD, Ethernet
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 440*586*150 mm
Weight: <25 kg
Cooling method: water cooling
Operating temperature: 10-40°C

Application Scenarios

Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping

This laser offers high efficiency, stability, and versatility, making it ideal for a variety of precision manufacturing processes.

The 1500W Global-Series CW Fiber Laser (RFL-C1500S-CE) by Raycus is a high-performance laser designed for a variety of industrial applications including cutting, welding, piercing, and medical device processing. Equipped with an optimized second-generation fiber transmission system, it ensures stable and precise cutting of thick sheet materials, delivering narrow seams and smooth edges. With power ranging from 300W to 3000W, the 1500W model offers higher electro-optical conversion efficiency, stable optical quality, and enhanced resistance to high-altitude conditions, making it ideal for precision tasks.

Key Features

High electro-optical conversion efficiency
QBH/QD connectors, customizable
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 1500W
Central wavelength: 1080±5nm
Maximum modulation frequency: 20kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: QBH (customizable)
Output fiber core diameter: 50μm (customizable)
Beam quality: <1.5
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 200-240V AC, single-phase
Control mode: RS232, AD, super terminal
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 410*586*150 mm
Weight: <40 kg
Cooling method: water cooling
Operating temperature: 10-40°C

Application Scenarios

Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping

This laser delivers reliable performance, making it ideal for a wide range of precision manufacturing and industrial applications.

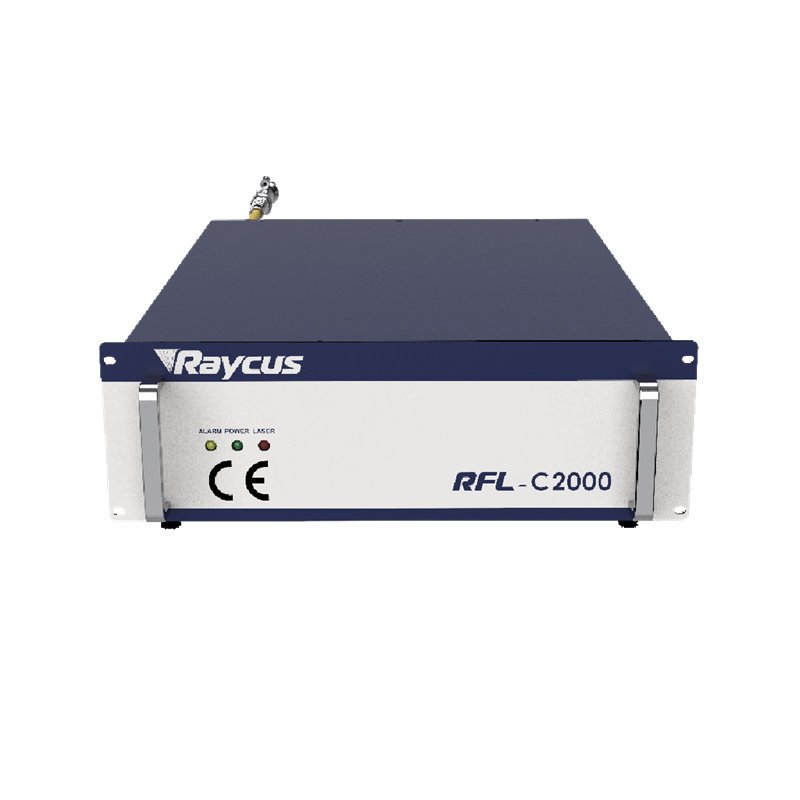

The 2000W Global-Series CW Fiber Laser (RFL-C2000S-CE) by Raycus offers superior performance across a wide range of industrial applications, including welding, precision cutting, cladding, surface treatment, and 3D printing. With high electro-optical conversion efficiency, excellent beam quality, and a wide modulation frequency range, this laser delivers strong reliability and a long, maintenance-free lifespan. Its fiber output characteristics allow easy integration with robots, making it ideal for flexible manufacturing systems and three-dimensional processing.

Key Features

High electro-optical conversion efficiency
QBH/QD connectors, customizable
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 2000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 20kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: QBH (customizable)
Output fiber core diameter: 50μm (customizable)
Beam quality: <1.5
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 220V±10%, Three-phase, four-wire connection
Control mode: RS232, AD, Ethernet
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 440*586*149 mm
Weight: <28 kg
Cooling method: water cooling
Operating temperature: 10-40°C

Application Scenarios

Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping

The 2000W Global-Series CW Fiber Laser is designed for efficiency, reliability, and seamless integration with robotic systems, making it a versatile tool for advanced industrial applications.

The 3000W Global-Series CW Fiber Laser (RFL-C3000S-CE) by Raycus is a high-performance fiber laser designed for diverse industrial applications such as welding, precision cutting, cladding, surface treatment, and 3D printing. With its high electro-optical conversion efficiency, superior beam quality, and wide modulation frequency range, it offers exceptional reliability and a long, maintenance-free operational lifespan. Its fiber output allows for easy integration with robotic systems, making it ideal for flexible manufacturing and three-dimensional processing needs.

Key Features

High electro-optical conversion efficiency
IQB connector, customizable
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 3000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 5kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: IIQB (customizable)
Output fiber core diameter: 50μm (customizable)
Beam quality BPP (mm*mrad): 1.5-2
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 380V±10%, Three-phase, four-wire connection
Control mode: RS232, AD, Ethernet
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 485*172*727 mm (handle included)
Weight: <55 kg
Cooling method: water cooling
Operating temperature: 10-40°C

Application Scenarios

Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping

The 3000W Global-Series CW Fiber Laser delivers strong performance and reliability, making it an excellent choice for advanced industrial processing and automation.

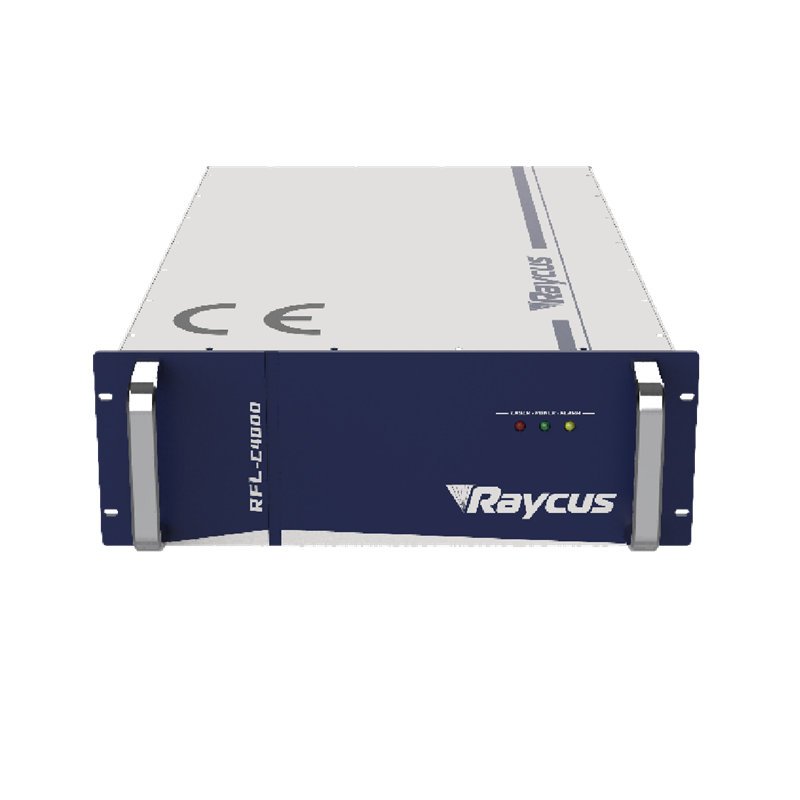

The 4000W Global-Series CW Fiber Laser (RFL-C4000S-CE) by Raycus is a versatile and high-performance fiber laser suitable for various industrial applications, including welding, precision cutting, cladding, surface treatment, and 3D printing. It features high electro-optical conversion efficiency, excellent beam quality, and a wide modulation frequency range, offering long-lasting, maintenance-free operation. Its fiber output characteristics allow for seamless integration with robotic systems, making it ideal for flexible and three-dimensional manufacturing processes.

Key Features

High electro-optical conversion efficiency
QBH connector, customizable
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 4000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 20kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: QBH (customizable)
Output fiber core diameter: 50μm (customizable)
Beam quality: 1.7-2.5
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 380V±10%, Three-phase, four-wire connection
Control mode: RS232, AD
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 485*172*802 mm (handle included)
Weight: <80 kg
Cooling method: water cooling
Operating temperature: 10-40°C

Application Scenarios

Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping

The 4000W Global-Series CW Fiber Laser offers reliable performance, easy integration, and is designed to meet the demands of advanced industrial processing tasks.

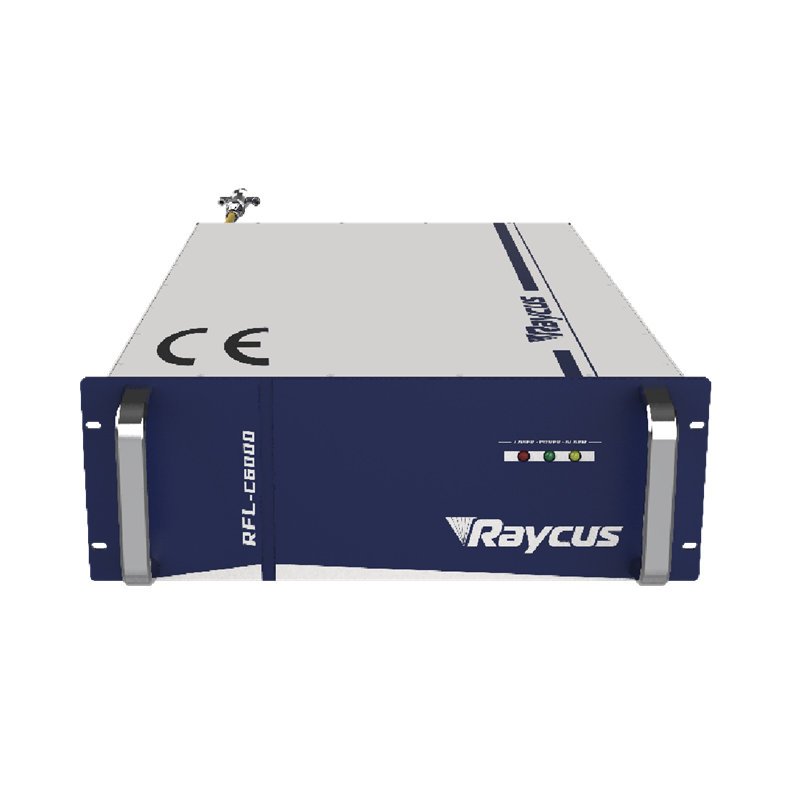

The 6000W Global-Series CW Fiber Laser (RFL-C6000S-CE) by Raycus is a high-performance laser ideal for industrial applications such as welding, precision cutting, cladding, surface treatment, and 3D printing. Featuring high electro-optical conversion efficiency, excellent beam quality, and strong reliability, this laser offers maintenance-free operation and a wide modulation frequency range. Its optical fiber output characteristics make it easy to integrate with robotic systems, making it perfect for advanced metal processing and flexible manufacturing setups.

Key Features

High electro-optical conversion efficiency
Customizable output fiber length
Editable waveform
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 6000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 20kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: QBH (customizable)
Output fiber core diameter: 50-75μm (customizable)
Beam quality (BPP): 2.7-3.1
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 380V±10%, Three-phase, four-wire connection
Control mode: RS232, AD, Ethernet
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 485×172×802 mm (handle included)
Weight: 80 kg
Cooling method: water cooling
Operating temperature: 10-40°C

The 6000W Global-Series CW Fiber Laser delivers exceptional performance and reliability, making it an ideal solution for demanding metal processing and advanced industrial applications.

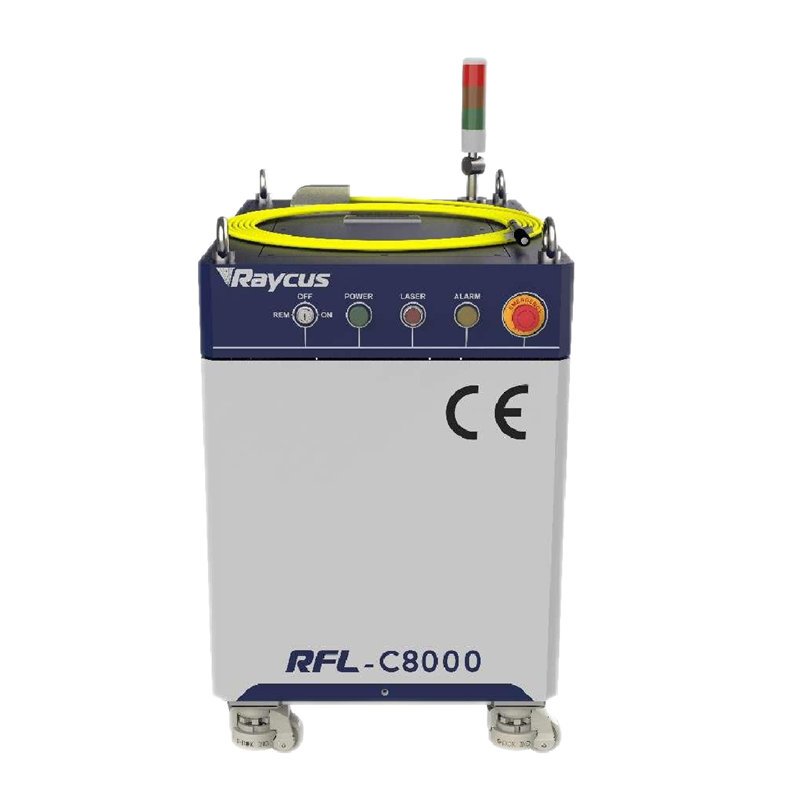

The 8000W Global-Series CW Fiber Laser (RFL-C8000S-CE) by Raycus is a high-powered, versatile fiber laser designed for industrial applications such as welding, precision cutting, cladding, surface treatment, and 3D printing. Featuring high electro-optical conversion efficiency, excellent beam quality, and wide modulation frequency, this laser is known for its strong reliability and long, maintenance-free lifespan. Its fiber output characteristics make it easy to integrate into robotic systems, meeting the demands of flexible, three-dimensional processing in manufacturing.

Key Features

High electro-optical conversion efficiency
QBH connector, customizable
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 8000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 5kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: QBH (customizable)
Output fiber core diameter: 50μm or 100μm (customizable)
Beam quality: <2 (50μm), <4 (100μm)
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 380V±10%, Three-phase, four-wire connection
Control mode: RS232, AD
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 560*1344*1157 mm (handle included)
Weight: <250 kg
Cooling method: water cooling
Operating temperature: 10-40°C

Application Scenarios

Precision Cutting
Metal Welding
Sheet Metal Piercing
Metal Carving
Surface Treatment
3D Printing/Rapid Prototyping

The 8000W Global-Series CW Fiber Laser is ideal for large-scale, precision industrial applications, providing high performance, reliability, and easy integration with flexible manufacturing systems.

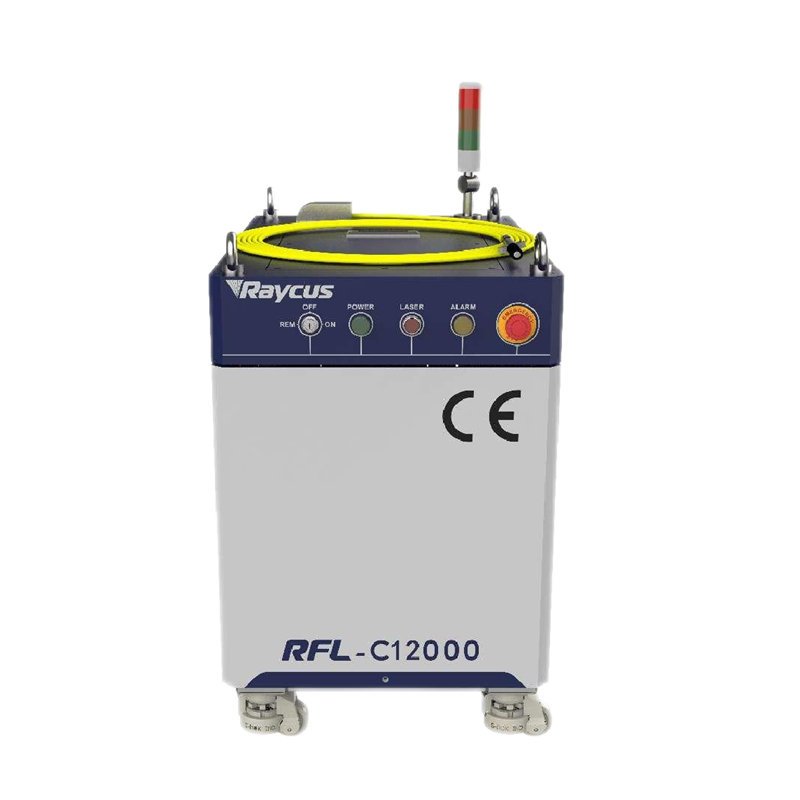

The 12000W Global-Series CW Fiber Laser (RFL-C12000S-CE) from Raycus offers superior performance with its high photoelectric conversion efficiency and customizable output fiber core diameter options of 75μm and 100μm. This laser provides excellent beam quality and enhanced anti-reflection capabilities, making it ideal for demanding industrial applications like cutting, welding, drilling, and medical device processing. Its optimized design ensures narrow kerfs and bright cross-sections, giving it a competitive edge over similar lasers in the market.

Key Features

High photoelectric conversion efficiency
Customizable output fiber length
QD connector, customizable
Maintenance-free operation
Wide modulation frequency range
High anti-reflection capability
High efficiency for thin plate cutting

Optical Properties

Average output power: 12000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 5kHz
Output power instability: ±1.5%
Red laser indicator: Yes

Output Characteristics

Output connector: QD (customizable)
Output fiber core diameter: 50μm (customizable)
Beam quality (BBP): 3-4 (100μm)
Output fiber length: 20m (customizable)

Electronic Control Characteristics

Input power: 380V±10%, Three-phase, four-wire connection
Control mode: RS232, AD, Ethernet
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 560×1344×1157 mm
Weight: 250 kg
Cooling method: water cooling

The 12000W Global-Series CW Fiber Laser is perfect for high-precision and high-efficiency processing, offering robust performance across a variety of industries while maintaining superior reliability and flexibility.

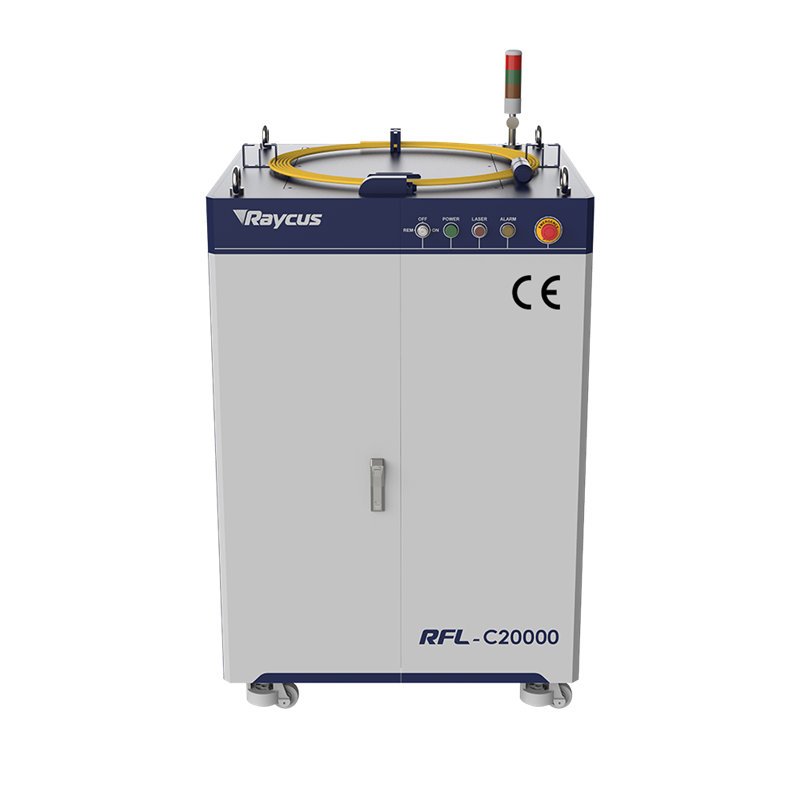

The 20000W Global-Series CW Fiber Laser (RFL-C20000M-CE) from Raycus is a powerful, high-performance laser designed for industrial applications requiring precision and efficiency. With high electro-optical conversion efficiency, excellent beam quality, and wide modulation frequency, this laser is ideal for welding, precision cutting, melting, cladding, and surface processing. Its optical output makes it easy to integrate with robotic systems, providing flexible manufacturing solutions for complex processing requirements.

Key Features

High electro-optical conversion efficiency
Customizable output fiber length
QP output cable
Maintenance-free operation
Wide modulation frequency range

Optical Properties

Average output power: 20000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 2kHz
Output power stability: ±1.5%
Red laser indicator: Yes

Electronic Control Characteristics

Input power: 323-436V AC, three-phase, four-wire connection @47-63Hz
Control mode: RS232, AD, Ethernet
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 960*1530*1160 mm (handle included)
Weight: <700 kg
Cooling method: water cooling
Operating temperature: 10-40°C

The 20000W Global-Series CW Fiber Laser is built for heavy-duty industrial applications, delivering outstanding reliability, precision, and efficiency for demanding manufacturing processes.

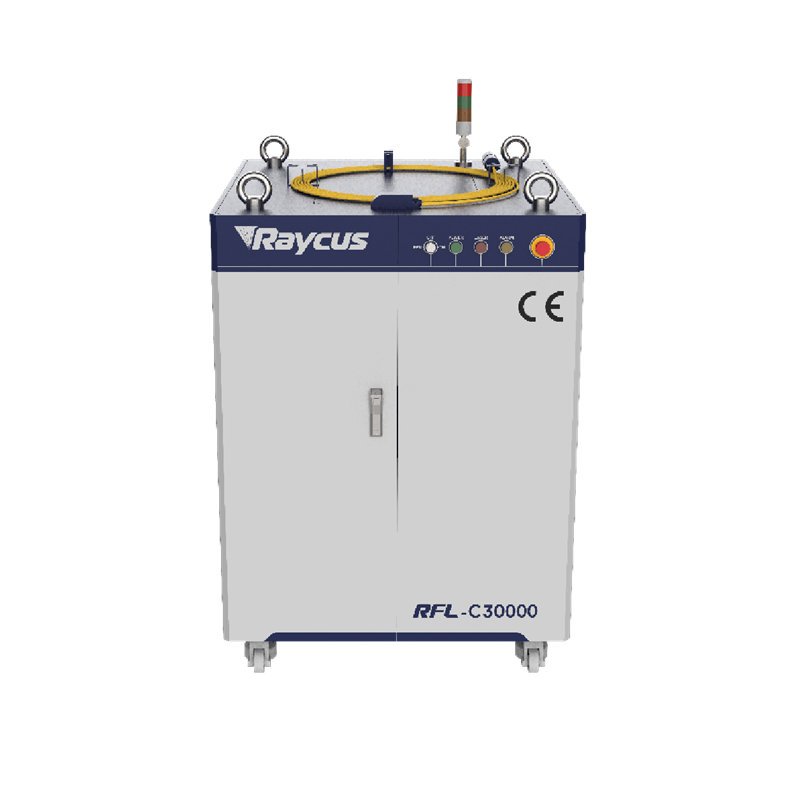

The 30000W Global-Series CW Fiber Laser (RFL-C30000M-CE) by Raycus is a high-power, multi-module laser system designed for industrial applications such as welding, precision cutting, melting, cladding, and surface processing. With its high electro-optical conversion efficiency, excellent beam quality, and wide modulation frequency, this laser delivers exceptional performance for demanding manufacturing environments. Its optical output allows for seamless integration with robotic systems, making it ideal for flexible and precise three-dimensional processing.

Key Features

High electro-optical conversion efficiency
Customizable output fiber length
QP output cable
Maintenance-free operation
Wide modulation frequency range
Compact design, easy to install

Optical Properties

Average output power: 30000W
Central wavelength: 1080±5nm
Maximum modulation frequency: 5kHz
Output power stability: ±1.4%
Red laser indicator: Yes

Output Characteristics

Output connector: QP
Output fiber core diameter: 100μm
Beam quality (BPP): ≤4.3 (mm.mrad)
Output fiber length: 30m

Electronic Control Characteristics

Input power: 323-436V AC, three-phase, four-wire connection @47-63Hz
Control mode: RS232, AD
Power adjustment range: 10-100%

Other Characteristics

Dimensions: 1050*1540*1290 mm (handle included)
Weight: <1200 kg
Cooling method: water cooling
Operating temperature: 10-40°C

The 30000W Global-Series CW Fiber Laser provides robust performance, making it ideal for high-intensity, precision manufacturing tasks, ensuring reliability and efficiency across a wide range of industrial applications.

High-power Pulsed Fiber Lasers Source

Raycus High-Power Pulsed Fiber Lasers are designed for high-precision applications such as marking, precision machining, and graphic engraving on a variety of materials, including gold, silver, copper, aluminum, and stainless steel. Featuring high peak power, high single pulse energy, and customizable spot diameters, these lasers deliver excellent performance for industries like mold surface treatment, automotive manufacturing, shipping, and petrochemicals. With uniform spot energy distribution and easy maintenance, models ranging from 200W to 2000W offer robust solutions for demanding industrial processes, ensuring efficiency and precision.

The 200W High-power Pulsed Fiber Laser (RFL-P200) by Raycus is a cutting-edge product ideal for industrial applications such as mold surface treatment, rust removal, oil cleaning, paint stripping, and welding surface pre-treatment. With an output power of 200W and a central wavelength of 1064±5nm, this laser delivers high single pulse energy and a uniform energy distribution in either square or circular beam spots, ensuring precision and efficiency in processes. The laser’s adjustable frequency range and excellent beam quality make it versatile and easy to use, with minimal maintenance requirements. Suitable for industries like automotive, shipping, petrochemical, and tire manufacturing, the RFL-P200 is a reliable solution for high-demand applications.

Key Features

High single pulse energy and uniform spot distribution
Adjustable frequency range (10-50kHz)
Water-cooled for optimal performance
Compact design (485*237*764 mm) and easy integration

Applications

Rust removal
Oil cleaning
Mold surface treatment
Paint stripping
Welding surface pre-treatment
Portrait stone surface treatment

This laser is a perfect choice for industries requiring precision and high power in surface treatment and cleaning processes.

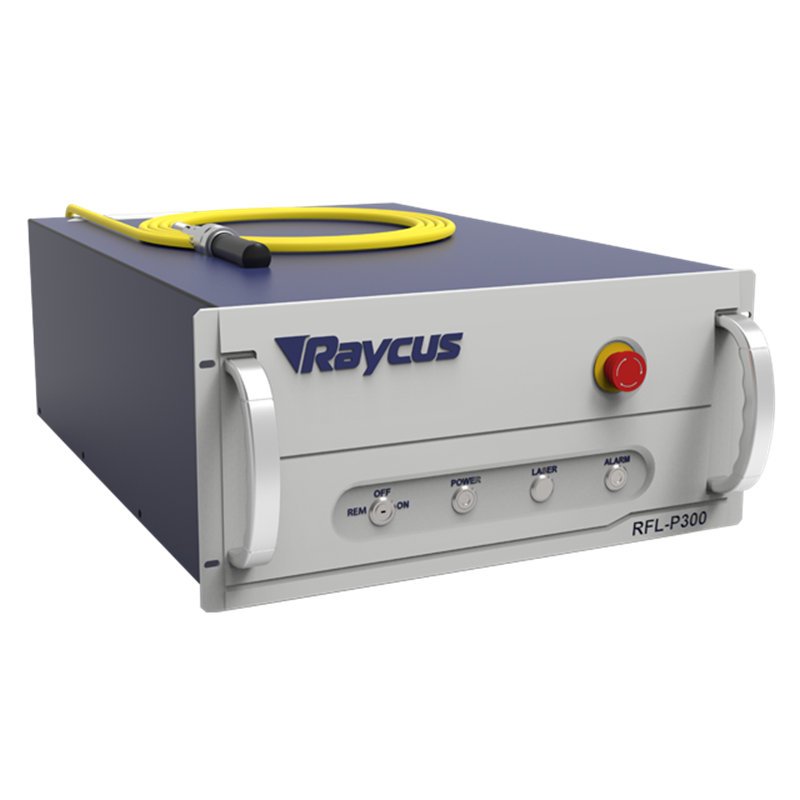

The 300W High-power Pulsed Fiber Laser (RFL-P300) by Raycus is part of their latest high-performance laser series, designed for industrial applications such as rust removal, oil cleaning, mold surface treatment, paint stripping, and welding surface pre-treatment. With an output power of 300W and a 1064±5nm central wavelength, this laser delivers high single pulse energy and uniform energy distribution in both square and circular beam spots, making it ideal for precision and heavy-duty applications. Its adjustable frequency range and excellent beam quality ensure ease of use and maintenance.

Key Features

High single pulse energy and uniform spot distribution
Adjustable frequency range (20-50kHz)
Water cooling for stable operation
Compact design (485*237*764 mm)

Applications

Rust removal
Oil cleaning
Mold surface treatment
Paint stripping
Welding surface pre-treatment
Portrait stone surface treatment

The RFL-P300 is a versatile tool for industries like automotive, shipping, petrochemicals, and tire manufacturing, offering reliable performance and easy integration for surface treatment tasks.

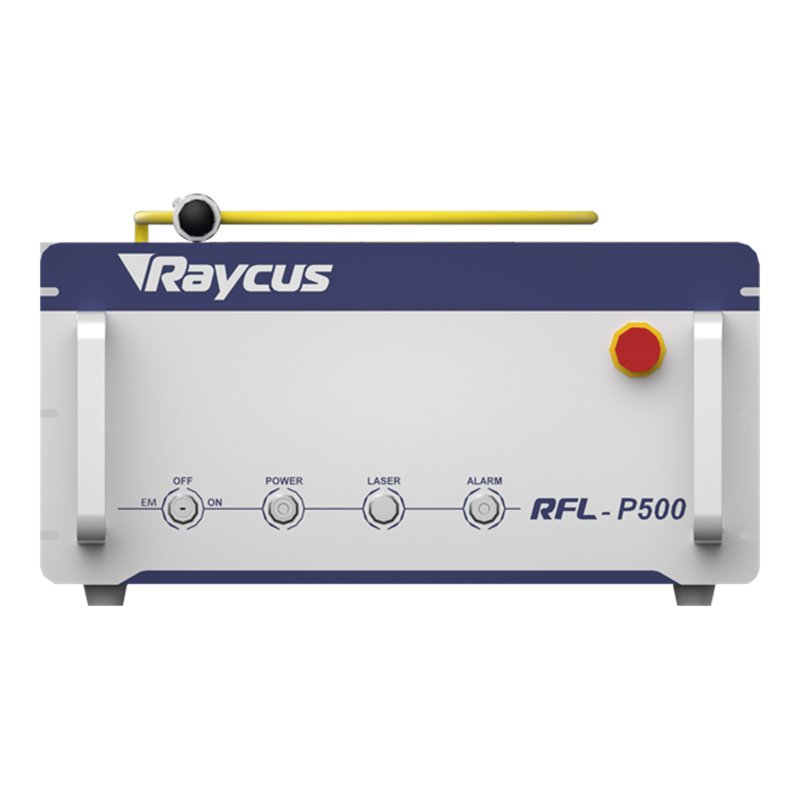

The 500W High-power Pulsed Fiber Laser (RFL-P500) by Raycus is a high-performance laser solution ideal for industrial applications such as rust removal, oil cleaning, mold surface treatment, paint stripping, and welding surface pre-treatment. With an output power of 500W at frequencies ranging from 20-50kHz, this laser offers high single pulse energy and uniform energy distribution, making it a reliable choice for heavy-duty surface treatment tasks. Its adjustable frequency range and excellent beam quality ensure easy maintenance and adaptability for a wide variety of industries.

Key Features

High single pulse energy and uniform spot distribution
Adjustable frequency range (10-50kHz)
Water cooling for stable and long-term operation
Compact design (502*254*755 mm)

Applications

Rust removal
Oil cleaning
Mold surface treatment
Paint stripping
Welding surface pre-treatment
Portrait stone surface treatment

The RFL-P500 is the perfect solution for industries such as automotive manufacturing, shipping, petrochemicals, and tire production, providing precision and efficiency in surface treatment and pre-processing tasks.

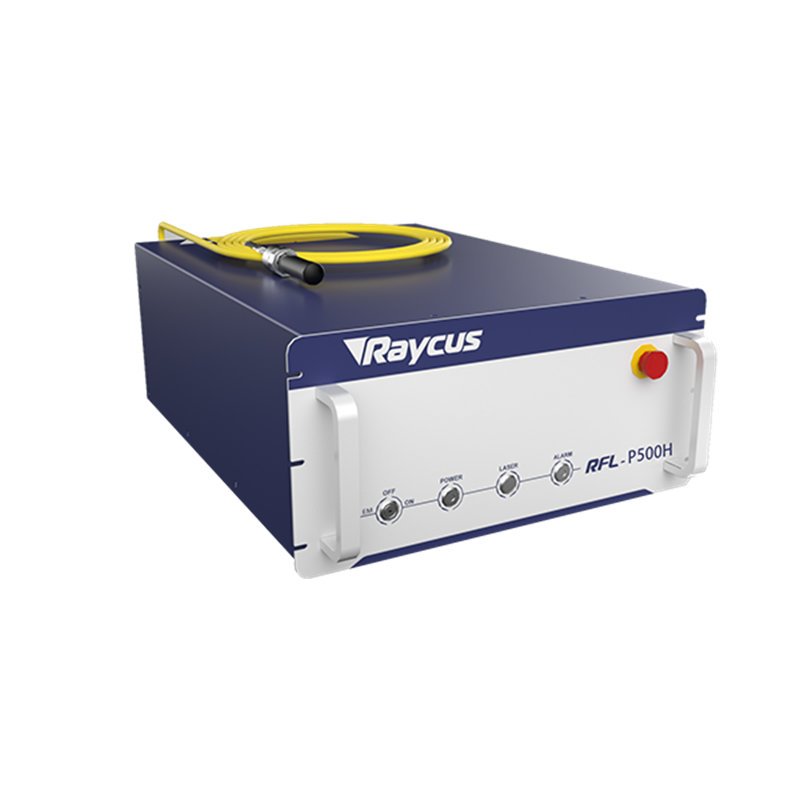

The 500H High-power Pulsed Fiber Laser (RFL-P500H) by Raycus is an advanced laser system designed for demanding industrial applications such as rust removal, oil cleaning, mold surface treatment, paint stripping, and welding surface pre-treatment. Delivering 500W of output power with a 1064±5nm wavelength, this laser offers high single pulse energy and excellent beam quality for precise, high-efficiency tasks. The adjustable frequency range and customizable settings make it a versatile tool for industries like automotive manufacturing, shipping, petrochemicals, and tire production.

Key Features

High single pulse energy and uniform spot distribution
Adjustable frequency range (10-100kHz)
Water cooling for stable performance
Compact design (798*480*253 mm)

Applications

Rust removal
Oil cleaning
Mold surface treatment
Paint stripping
Welding surface pre-treatment
Portrait stone surface treatment

The RFL-P500H offers powerful, precise performance, making it ideal for industrial surface treatment tasks, with easy maintenance and efficient energy output.

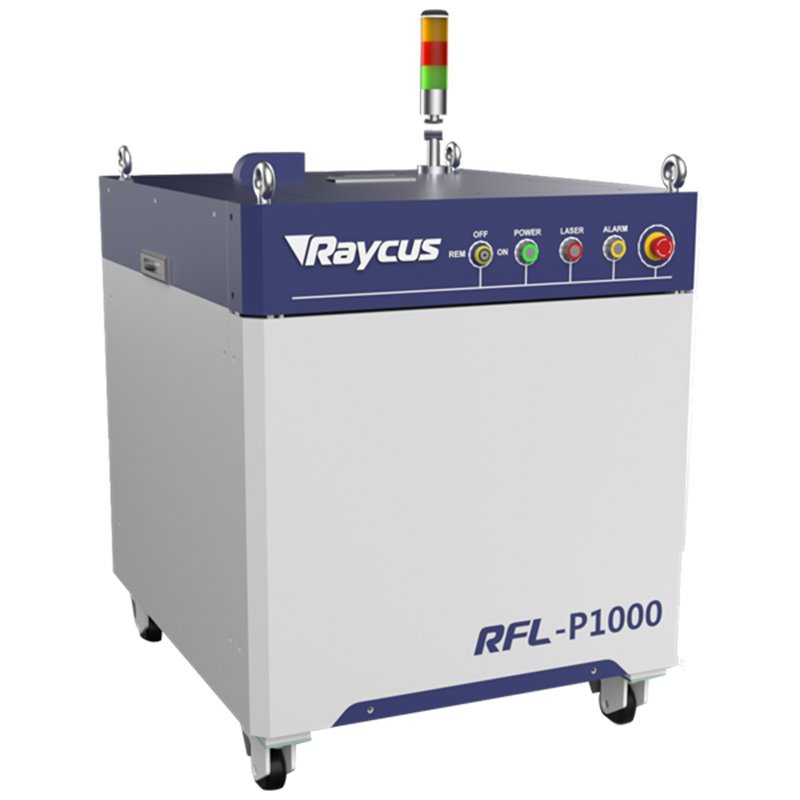

The 1000W High-power Pulsed Fiber Laser (RFL-P1000) from Raycus is a cutting-edge laser solution designed for industrial applications such as rust removal, oil cleaning, mold surface treatment, paint stripping, and welding surface pre-treatment. With an output power of 1000W at frequencies ranging from 20-50kHz, this laser delivers high single pulse energy and uniform energy distribution, ensuring precision in demanding tasks. Its adjustable frequency range and excellent beam quality make it highly versatile and easy to use for industries like automotive manufacturing, shipping, and petrochemical industries.

Key Features

High single pulse energy and uniform spot distribution
Adjustable frequency range (10-50kHz)
Water cooling for stable and reliable operation
Compact design (698*898*865 mm)

Applications

Rust removal
Oil cleaning
Mold surface treatment
Paint stripping
Welding surface pre-treatment
Portrait stone surface treatment

The RFL-P1000 is ideal for precision industrial surface treatment tasks, offering high performance, reliability, and ease of maintenance for a wide range of industries.

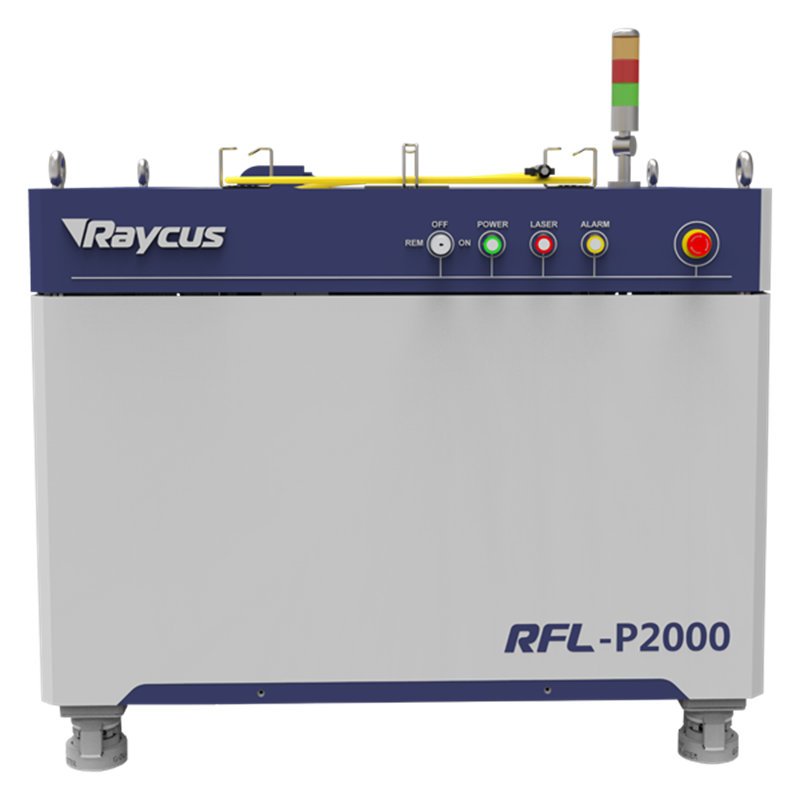

The 2000W High-power Pulsed Fiber Laser (RFL-P2000) by Raycus is a highly advanced laser system designed for demanding industrial applications such as rust removal, oil cleaning, mold surface treatment, paint stripping, and welding surface pre-treatment. With an output power of 2000W and a 1064±5nm wavelength, this laser delivers high single pulse energy and uniform energy distribution, making it ideal for precision tasks in industries like automotive manufacturing, shipping, and petrochemical industries. Its adjustable frequency range and excellent beam quality ensure ease of use and minimal maintenance.

Key Features

High single pulse energy and uniform spot distribution
Adjustable frequency range (20-50kHz)
Water cooling for stable and long-term operation
Compact design (1018*836*850 mm)

Applications

Rust removal
Oil cleaning
Mold surface treatment
Paint stripping
Welding surface pre-treatment
Portrait stone surface treatment

The RFL-P2000 is an excellent choice for heavy-duty industrial surface treatment tasks, offering reliability, precision, and easy maintenance.

High-power Pulsed Fiber Lasers

MOPA Fiber Lasers

ABP Adjustable Beam Profile Fiber Lasers

MYJG Series CO2 Laser Power Supply

The MYJG Series CO2 Laser Power Supply is known for its high compatibility, efficiency, and reliable performance, making it a preferred choice for CO2 laser cutting and engraving machines. These power supplies are available in models supporting different wattages, such as 40W, 60W, 80W, 100W, 130W, and 150W.

These power supplies are widely used in laser engraving, cutting, and marking machines, offering excellent performance in both small-scale and large-scale applications.

Still not finding what you're looking for? Contact our consultants for more available products.

Features of Our CO2 Laser Power Supply

Comprehensive Protection and Stability

Our CO2 laser power supplies are equipped with advanced protective systems, ensuring stable and reliable performance in a wide range of applications. Whether you’re working with metal, wood, acrylic, or leather, our power supplies offer consistent power output, keeping your laser machines running smoothly and efficiently for both cutting and engraving tasks.

Exceptional Durability

Built with high-quality components, our CO2 laser power supplies are designed to withstand continuous use, high temperatures, and mechanical stress. They provide stable power to your laser systems, ensuring long-lasting operation even in demanding environments. This reduces the need for frequent maintenance and increases the lifespan of both the power supply and the laser machine.

Versatile Applications

Our power supplies are compatible with a wide range of CO2 laser machines, making them suitable for various industries. Whether you are cutting metal, leather, or wood, or engraving delicate materials like paper and acrylic, our power supplies ensure precise, high-quality results. They are perfect for use in manufacturing, advertising, textiles, and other industries that demand reliable laser power.

Optimized for High Performance

Our power supplies are designed for high-efficiency operation, delivering stable voltage and current to your laser system. With fast response times and advanced power regulation, they ensure smooth and precise laser cutting and engraving, from tough materials like metal to intricate projects involving acrylic or paper. This optimization helps maximize productivity and improve your overall operational efficiency.

Easy Maintenance and Installation

Featuring a simple, user-friendly design, our CO2 laser power supplies are easy to install and maintain. The power supplies are equipped with easy-to-use interfaces and clear diagnostic indicators, making it quick to perform maintenance, reduce downtime, and keep your operations running smoothly.

Cost-Effective and Reliable

Our CO2 laser power supplies offer high performance at competitive prices, providing an excellent return on investment. Whether for large-scale industrial applications or smaller craft projects, our power supplies deliver reliable, cost-effective solutions without compromising on quality or durability.

Application Of Royell Laser Power Supply

I.How much power does a CO2 laser cutter use?

The power consumption of a CO2 laser cutter depends on several factors, including the laser tube’s wattage, the machine’s efficiency, and how it’s being used. Here’s a general breakdown:

Laser Tube Power: CO2 laser cutters are typically available in a range of power levels, from 30W to 150W for smaller machines, and up to 400W or more for industrial systems. The wattage of the laser tube represents its output power, which directly affects cutting speed and the thickness of materials it can handle.
Total Machine Power: In addition to the laser tube, the laser cutter also consumes power for other components like cooling systems (chillers), motors (for moving the laser head), and control electronics. The total power usage can be 2 to 3 times the laser tube’s wattage. For example:
- A 60W laser cutter might use about 150W to 180W of total power.
- A 150W industrial CO2 laser might consume 300W to 450W or more, depending on the configuration.
Operational Usage: Power consumption will also depend on how the machine is used. Continuous operation at high power settings will use more energy compared to intermittent use at lower settings.

In general, small to mid-range CO2 laser cutters (30W-100W) typically consume around 500W to 1.5kW of electrical power during operation, while larger industrial units can use several kilowatts.

II.What is the frequency of CO2 laser power supply？

The frequency of a CO2 laser power supply typically refers to the switching frequency of the power supply used to drive the laser. This frequency is crucial for converting the incoming electrical energy into a stable high-voltage DC output required for operating the CO2 laser tube.

For most CO2 laser power supplies:

The switching frequency generally ranges from 20 kHz to 100 kHz, depending on the design and specific requirements of the power supply.

This frequency enables the power supply to efficiently convert AC power to the required DC voltage while ensuring a stable and controlled output for the laser tube. Some power supplies, especially those with more advanced or digital control, may operate at higher frequencies for improved efficiency and precision.

III.How to check CO2 laser power supply？

To check a CO2 laser power supply, you can follow these steps to ensure it’s working properly and diagnose any potential issues:

1. Visual Inspection

Check for damage: Inspect the power supply for any visible damage, burnt components, loose wires, or connectors.
Cooling system: Ensure that the cooling fans or water-cooling systems are working properly, as overheating can damage the power supply.

2. Power Supply Output Test

Multimeter Test: Use a multimeter to check the output voltage. CO2 laser power supplies typically output high voltage, usually in the range of 20-50 kV (depending on the model). Testing should be done with caution or by a professional due to the dangerous voltages involved.
Ground and high-voltage connections: Ensure the ground connections are properly attached and that the high-voltage cables are securely connected to the laser tube.

3. Laser Tube Functionality

Test laser output: If the laser is not firing or the power output is low, you may have an issue with the power supply. You can manually activate the laser using the test button on the power supply (if available).
- Button test: Most CO2 power supplies have a button that allows for manual laser firing, which helps confirm if the power supply is delivering power to the laser tube.

4. Check Input Voltage

Ensure that the input voltage (AC power) is correct for the power supply. Some CO2 laser power supplies support 110V or 220V, depending on the model. Check with a multimeter to verify the input voltage is within the required range.

5. Status Indicator Lights

Some CO2 laser power supplies have LED indicators to show the status of power, water cooling, and other signals. Refer to your power supply’s manual to interpret the LED codes and identify potential issues.

6. Test Signals

TTL or PWM signal: Check the control signals (TTL or PWM) to ensure the power supply is receiving the correct start/stop signals from the machine’s control board.

7. Check for Error Messages

Some advanced power supplies or laser systems may display error codes or warning messages. Refer to the manual to decode any error messages and take appropriate corrective action.

8. Check for Overcurrent or Overvoltage Protection

Power supplies often have built-in protection mechanisms. If these are triggered, it could indicate a problem with the laser tube, wiring, or power supply itself. If the protection feature is activated, resetting the system might help after identifying the root cause.

9. Water Cooling System

Ensure the water cooling system is functioning properly if your CO2 laser is water-cooled. If the water flow is insufficient, the power supply may fail to operate, and the system may enter a protection mode.

10. Consult a Professional

If you are unsure or uncomfortable working with high-voltage components, it’s best to consult a professional technician to handle the diagnostics and repairs. High voltage can be dangerous without proper precautions.

Following these steps can help you diagnose issues with a CO2 laser power supply and ensure it’s functioning as expected.
